微信支付之现金红包

相信微信红包大家已经非常熟悉了，今天带领大家使用代码实现微信红包功能。

1.1 发送流程

在实现发送红包之前，我们有必要了解一下发送流程。

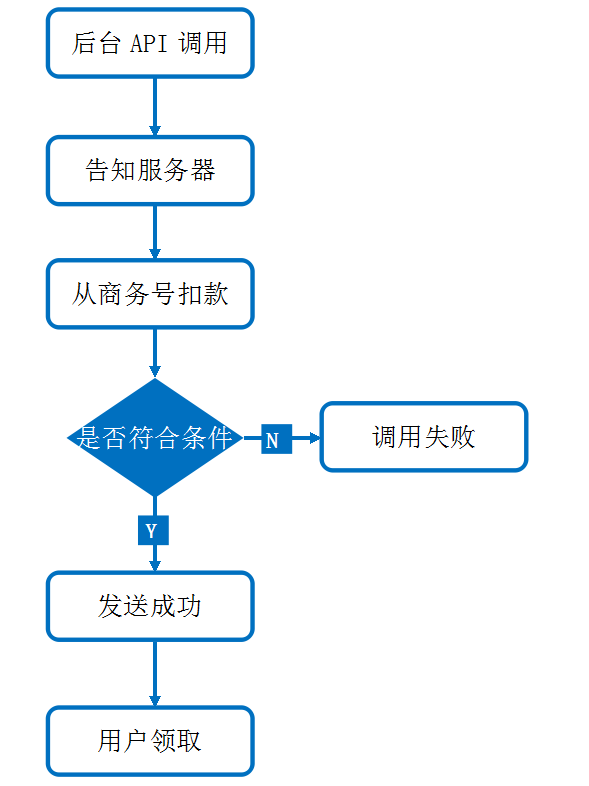

微信红包接口调用流程:
① 后台API调用：待进入联调过程时与开发进行详细沟通；
② 告知服务器：告知服务器接收微信红包的用户openID，告知服务器该用户获得的金额；
③ 从商务号扣款：服务器获取信息后从对应的商务号扣取对应的金额；
④ 调用失败：因不符合发送规则，商务号余额不足等原因造成调用失败，反馈至调用方；
⑥ 发送成功：以微信红包公众账号发送对应红包至对应用户；
如下图所示:

1.2 接口调用请求

请求url: https://api.mch.weixin.qq.com/mmpaymkttransfers/sendredpack。
是否需要证书: 是（证书及使用说明详见商户证书)。
请求方式: POST

1.3 网络封装RedPackConn方法

package org.wechat.redpack.conn;
import java.io.BufferedReader;
import java.io.File;
import java.io.FileInputStream;
import java.io.IOException;
import java.io.InputStreamReader;
import java.security.KeyStore;
import javax.net.ssl.SSLContext;
import org.apache.http.HttpEntity;
import org.apache.http.client.ClientProtocolException;
import org.apache.http.client.methods.CloseableHttpResponse;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.conn.ssl.SSLConnectionSocketFactory;
import org.apache.http.conn.ssl.SSLContexts;
import org.apache.http.entity.StringEntity;
import org.apache.http.impl.client.CloseableHttpClient;
import org.apache.http.impl.client.HttpClients;
import org.apache.http.util.EntityUtils;
/**
 * 请注意,该类中的方法依赖以下几个jar
 * httpclient4.3.4.jar
 * httpcore-4.3.2.jar
 * commons-logging-1.1.3.jar
 * @author Andy
 *
 */
public class RedPackConn {
	private static final String SENDREDPACK="https://api.mch.weixin.qq.com/mmpaymkttransfers/sendredpack";		//发送现金红包
	private static final String GETHBINFO="https://api.mch.weixin.qq.com/mmpaymkttransfers/gethbinfo";			//获取红包信息  (现金和裂变都是该接口)
	private static final String SENDGROUPREDPACK="https://api.mch.weixin.qq.com/mmpaymkttransfers/sendgroupredpack";	//发送裂变红包
	public static final String KEYSTORETYPE="PKCS12";				//密匙类型


	/**
	 * 获取安全连接的方法,使用该方法进行连接
	 * @param certPath			证书的路径
	 * @param macid				商户号id
	 * @return		返回安全连接  (该安全连接添加了商户号,证书后的安全连接,
	 * 				在微信API中制定需要证书的地方则通过该方法进行执行)
	 */
	private static CloseableHttpClient getSecureConn(String certPath,String macid){
		char[] array = macid.toCharArray();
		FileInputStream instream = null;
		CloseableHttpClient httpClient = null;
		KeyStore keyStore = null;
	    try {
		    keyStore  = KeyStore.getInstance(KEYSTORETYPE);
	        instream = new FileInputStream(new File(certPath));
	        keyStore.load(instream, array);
        }catch(Exception ex){
        	ex.printStackTrace();
        } finally {
        	try{
        		instream.close();
        	}catch(Exception ex){
        		ex.printStackTrace();
        	}
        }
        try{
	        SSLContext sslcontext = SSLContexts.custom().loadKeyMaterial(keyStore,array).build();
	        SSLConnectionSocketFactory sslsf = new SSLConnectionSocketFactory( sslcontext,new String[] { "TLSv1" }, null,SSLConnectionSocketFactory.BROWSER_COMPATIBLE_HOSTNAME_VERIFIER);
	        httpClient = HttpClients.custom()
	                .setSSLSocketFactory(sslsf)
	                .build();
        }catch(Exception ex){
        	ex.printStackTrace();
        }
		return httpClient;
	}

	/**
	 * 执行安全连接
	 * @param data	   请求数据的参数
	 * @param path
	 * @param charter
	 * @param certPath
	 * @param macid
	 * @return
	 * @throws IOException
	 * @throws ClientProtocolException
	 */
	public static String executeConn(String data,String path,String certPath,String macid) throws ClientProtocolException, IOException{
		String result="";
		CloseableHttpClient httpclient = getSecureConn(certPath,macid);
        try{
        	result = execute(httpclient,path,data);
        }catch(Exception ex){
        	ex.printStackTrace();
        }
        return result;
    }

	/**
	 * 返回普通连接
	 * @param data	请求时所带的参数
	 * @param path	请求的路径
	 * @return
	 */
	public static String executeConn(String data,String path){
		String result = "";
		CloseableHttpClient httpclient = HttpClients.createDefault();
		try {
			result = execute(httpclient,path,data);
		} catch (IOException e) {
			e.printStackTrace();
		}
		return result;
	}
	/**
	 * 执行网络请求
	 * @param httpclient	待执行的请求client,其中包括安全cleint
	 * @param path			请求路径
	 * @param data			请求数据
	 * @return
	 * @throws ClientProtocolException
	 * @throws IOException
	 */
	private static String execute(CloseableHttpClient httpclient,String path,String data) throws ClientProtocolException, IOException{
		String result = "";
		try {
            HttpPost httpPost = new HttpPost(path);
            StringEntity rentity = new StringEntity(data);
            rentity.setContentEncoding("UTF-8");
            rentity.setContentType("application/json;charset=utf8");
            httpPost.setEntity(rentity);
            CloseableHttpResponse response = httpclient.execute(httpPost);
            StringBuffer buffer = new StringBuffer();
            try {
                HttpEntity entity = response.getEntity();
                System.out.println(response.getStatusLine());
                if (entity != null) {
                    BufferedReader bufferedReader = new BufferedReader(new InputStreamReader(entity.getContent()));
                    String text;
                    while ((text = bufferedReader.readLine())!= null) {
                        buffer.append(text);
                    }
                }
                result = buffer.toString();
                EntityUtils.consume(entity);
            } finally {
                response.close();
            }
        } finally {
            httpclient.close();
        }
        return result;
	}

	/**
	 * 发送红包方法 	(注意该方法如果请求参数中有中文,则会出现签名错误有待解决)
	 * @param data		 			请求对象的json数据集
	 * @param certPath				证书的路径,
	 * @param macid					商户号
	 * @return						请求结果后的返回信息
	 */
	public static String sendRedInfo(String data,String certPath,String macid){
		String result="";
		try {
			result = executeConn(data,SENDREDPACK,certPath,macid);
		} catch (IOException e) {
			e.printStackTrace();
		}
		return result;
    }

	/**
	 * 获取红包信息
	 * @param data		请求参数对象
	 * @param certPath	证书路径
	 * @param macid		商户编号
	 * @return		返回请求后的信息
	 */
	public static String getRedInfoList(String data,String certPath,String macid){
		String result = "";
		try {
			result = executeConn(data,GETHBINFO,certPath,macid);
		} catch (IOException e) {
			e.printStackTrace();
		}
		return result;
	}

	/**
	 * 发送裂变红包
	 * @param data		请求参数对象
	 * @param cretPath	证书的路径
	 * @param macid	   	 商户编号
	 * @return
	 */
	public static String sendGroupRedBack(String data,String cretPath,String macid){
		String result="";
		try {
			result = executeConn(data,SENDGROUPREDPACK,cretPath,macid);
		} catch (IOException e) {
			e.printStackTrace();
		}
		return result;
	}
}

这里使用到了httpcliet,封装了发送红包的请求层，注释已经很清楚，这里不在一一解释。仅仅这样是不够的，我们进行了进一步的封装。

1.4 发送工具类

package org.wechat.redpack.utils;

import org.apache.log4j.Logger;
import org.wechat.common.entity.results.WechatResult;
import org.wechat.common.utils.ConvertXMLUtils;
import org.wechat.common.utils.Signature;
import org.wechat.common.utils.XStreamFactory;
import org.wechat.redpack.conn.RedPackConn;
import org.wechat.redpack.request.BaseRedPackRequest;
import org.wechat.redpack.request.GethbinfoRequest;
import org.wechat.redpack.request.GroupredpackRequest;
import org.wechat.redpack.request.RedpackRequest;
import org.wechat.redpack.respose.GethbinfoRespose;
import org.wechat.redpack.respose.HbListItem;
import org.wechat.redpack.respose.SendredpackRespose;

import com.thoughtworks.xstream.XStream;

/**
 * 发送红包的工具类
 * @author Andy
 *
 */
public class SendRedPackUtils {
	public static final String SUCCESS="SUCCESS";		//成功标识
	public static final String FAIL="FAIL";				//失败标识
	private static Logger log = Logger.getLogger(SendRedPackUtils.class);

	/**
	 * 发送红包方法
	 * @param request	发送红包的请求对象实体
	 * @param apikey	商户中的apikey
	 * @param certPath	api证书路径
	 * @param macid		商户号
	 * @return
	 */
	private String sendRedUtils(BaseRedPackRequest request,String apikey,String certPath,String macid){
		String result="";
		String sign = Signature.getSignForObject(request,apikey);
		request.setSign(sign);
		XStream st = XStreamFactory.initSplitLine();
		st.alias("xml",RedpackRequest.class);
		String data = st.toXML(request);
		result =RedPackConn.sendRedInfo(data, certPath, macid);
		log.info("sendRedUtils:["+result+"]");
		return result;
	}

	/**
	 * 发送红包(简化结果集后的方法)
	 * @param request	发送红包的请求对象
	 * @param apikey	apikey
	 * @param certPath	正式路径
	 * @param macId		商户号
	 * @return	result.isSusccess==true 则表示为发送成功，否则为发送失败， result.msg 为提示信息,result.obj为 request对象
	 */
	public WechatResult sendRed(RedpackRequest request,String apikey,String certPath,String macId){
		String  data =  sendRedUtils(request,apikey,certPath,macId);
		WechatResult result = convertResult(data,request);
		return result;
	}

	/**
	 * 将返回值封装成WechatResult
	 * (应用于现金红包和裂变红包)
	 * @param respose	请求成功后返回的xml格式的数据包
	 * @param request	请求对象 (方便追踪)
	 * @return	result.isSusccess==true 则表示为发送成功，否则为发送失败， result.msg 为提示信息,result.obj为 request对象
	 */
	private WechatResult convertResult(String data,BaseRedPackRequest request){
		WechatResult result = new WechatResult();
		SendredpackRespose respose = (SendredpackRespose) ConvertXMLUtils.getObjectFromXML(data, SendredpackRespose.class);
		if(respose.getReturn_code().equalsIgnoreCase(SUCCESS)&&respose.getResult_code().equalsIgnoreCase(SUCCESS)){			//表示成功
			result.setSuccess(true);
		}
		result.setMsg(respose.getReturn_msg());
		result.setObj(request);
		return result;
	}

	/**
	 * 发送裂变红包
	 * @param request	请求参数对象
	 * @param apiKey	api密匙(注意此处是商户号中的密匙，并不是appkey)
	 * @param certPath	证书的路径
	 * @param macId		商户号
	 * @return  result.isSusccess==true 则表示为发送成功，否则为发送失败， result.msg 为提示信息,result.obj为 request对象
	 */
	public WechatResult sendGroupRedPack(GroupredpackRequest request,String apiKey,String certPath,String macId){
		String sign = Signature.getSignForObject(request,apiKey);
		request.setSign(sign);
		XStream xstream = XStreamFactory.initSplitLine();
		xstream.alias("xml",GroupredpackRequest.class);
		String data = xstream.toXML(request);
		String resultData = RedPackConn.sendGroupRedBack(data, certPath, macId);
		WechatResult result  = convertResult(resultData,request);
		return result;
	}

	/**
	 * 获取红包信息
	 * @param request	获取红包信息请求对象实体
	 * @param certPath	证书所在路径
	 * @param macId		商户号
	 * @return
	 */
	public WechatResult getHbInfo(GethbinfoRequest request,String certPath,String macId,String apiKey){
		WechatResult result = new WechatResult();
		String sign = Signature.getSignForObject(request,apiKey);
		request.setSign(sign);
		XStream st = XStreamFactory.initSplitLine();
		st.alias("xml",GethbinfoRequest.class);
		String data = st.toXML(request);
		String strData =RedPackConn.getRedInfoList(data, certPath,macId);
		System.out.println("data-->"+strData);
		GethbinfoRespose respose = (GethbinfoRespose) ConvertXMLUtils.getObjectFromCollectionXML(strData,GethbinfoRespose.class,HbListItem.class);
		System.out.println(respose.getAmount());
		log.info(strData);
		return result;
	}
}

到这里，现金红包，裂变红包，获取红包信息，已经封装好，只需要调用SendRedPackUtils中的方法即可。

1.5 调用示例

这里是调用发送红包的示例方法:

@Test
public void testHttpClientSendRedBack(){
     RedpackRequest request = new RedpackRequest();
		request.setAct_name("");  //名称
		request.setClient_ip(""); //客户端ip
		request.setMch_billno("");  //交易号
		request.setMch_id(""); //商户号
		request.setNonce_str("");  //随机字符串
		request.setRe_openid(“”);  //接收用户openid
		request.setRemark("");    //备注
		request.setSend_name(""); //用户名称
		request.setTotal_amount();  //发送金额 分为单位
		request.setTotal_num();  //红包数量
		request.setWishing(""); //红包名称
	    request.setWxappid("");  //appid
	    SendRedPackUtils utils = new SendRedPackUtils();
	    WechatResult result =  utils.sendRed(request,"apikey",“证书路径","商户id");
	    String jsonData = ConvertJsonUtils.toJsonString(result);
	    System.out.println(jsonData);
}

1.6 依赖库

由于在该项目中涉及到的接口比较多，有微信支付，微信现金红包，裂变红包，微信公众号相关接口，微信授权等，所以涉及到的jar比较多，我会一一为大家讲解。
commons-logging-1.1.3.jar
dom4j-1.6.1.jar
fastjson-1.1.15.jar
httpclient-4.3.4.jar
httpcore-4.3.2.jar
log4j.jar
xpp3-1.1.4c.jar
xstream-1.4.7.jar
百度网盘下载地址:
http://pan.baidu.com/s/1eSymCds

1.7 参考文献

微信支付官方文档
微信现金红包文档
